Full Sequential Gearbox 6 speed | Subaru Impreza WRX STI
Full Sequential Gearbox 6 speed | Subaru Impreza WRX STI
  • Weight reduction of 20kgs compared to the standard Subaru transmission !!!
  • Rated up to 800PS, torque moment 800Nm
  • Supplied assembled

KIT INCLUDES

  • Complete Sequential Mechanism with Dog Gears
  • Full Billet Casing CNC Aluminium – Ultra light weight
  • Input and Output Shafts
  • Shifting Roller
  • Shifting Forks
  • Shifting Rods
  • Complete Bearing and Needle Bearing set
  • Internal Shifting Piston
  • External Oil Pump Inlet/Outlet
  • Hydraulic Inlet/Outlet
  • Gear Indicator Sensor
  • Position for Internal Hydraulic Pump

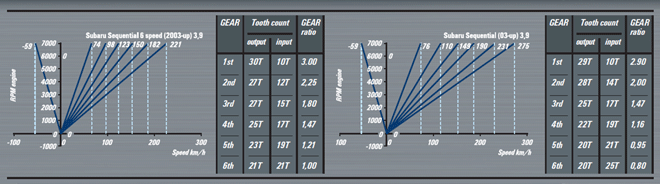

Gear Ratios Available

Full Sequential Gearbox 6 speed - Subaru Impreza WRX STI - Graph

Information

Why choose a KAPS Transmissions sequential gearbox? The answer is easy! The sequential gearbox is designed to provide the ultimate in professionalism and performance: shift quickness, strength, durability, components and flexibility.

  • Shift Quickness
    The gearbox contains KAPS Transmissions‘ revolutionary patented dog ring and dog hub technology, which shortens the gear lever movement and greatly improves shift times to as low as 50milliseconds (with our EPS computer).
  • Strength/Durability
    Throughout the whole gearbox, every component is strengthened to withstand up to 800NM of torque! Not just inside the gearbox is important, but also the case. Our experience has proven that casted aluminium casings do not hold up to the high demands required from high horsepower and torque cars and our CNC aluminium casing is the toughest on the market. The other benefit is that aluminium creates an extremely light case, and the total weight saving of our kit is around 20kgs over the standard Subaru gearbox!
  • Components
    Ask the questions and compare the full gearbox package to the competition – CNC aluminium housing (-20kgs), Internal Shifting Piston, Hydraulic Inlet/Outlet, Oil pump Inlet/Outlet, Position for internal Hydraulic Pump. We give you more to blow away the competition.
  • Flexibility
    The gearbox was designed to provide you with choices. See our additional available sequential products to the right.

Find out more. Contact us today.



Photos

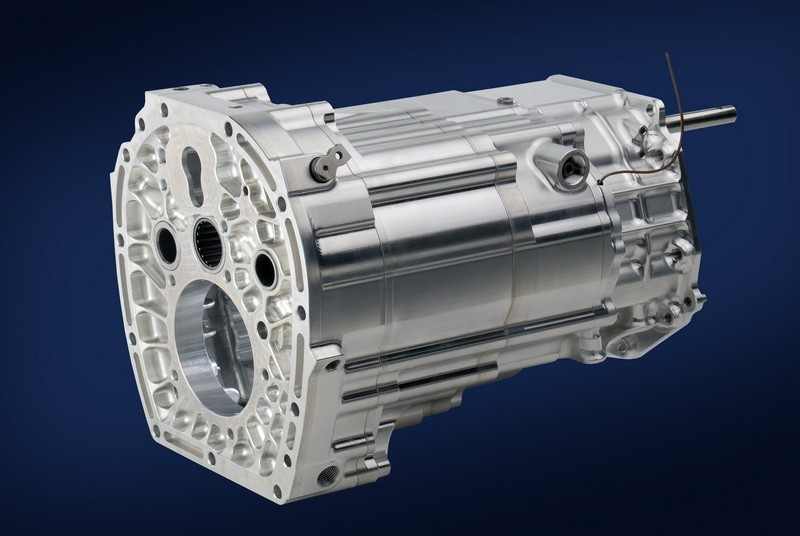

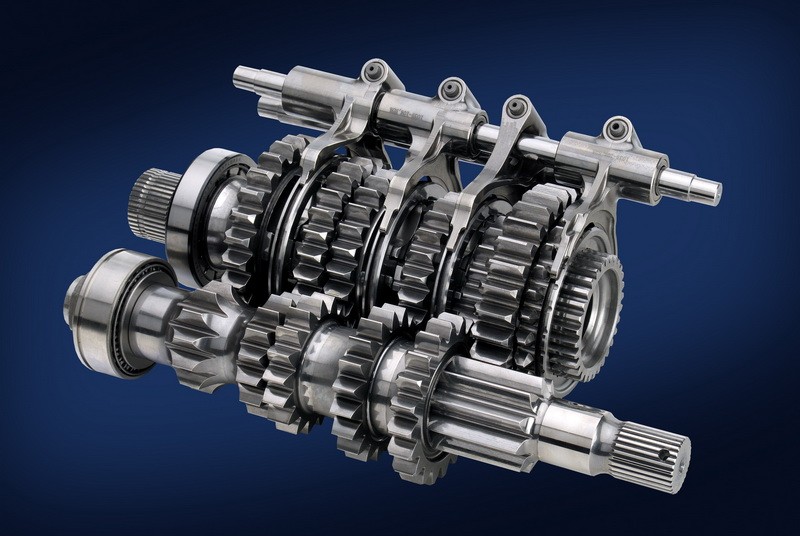

Carbon leverCasingHousingInput and Output ShaftLED display EPSShift Roller
